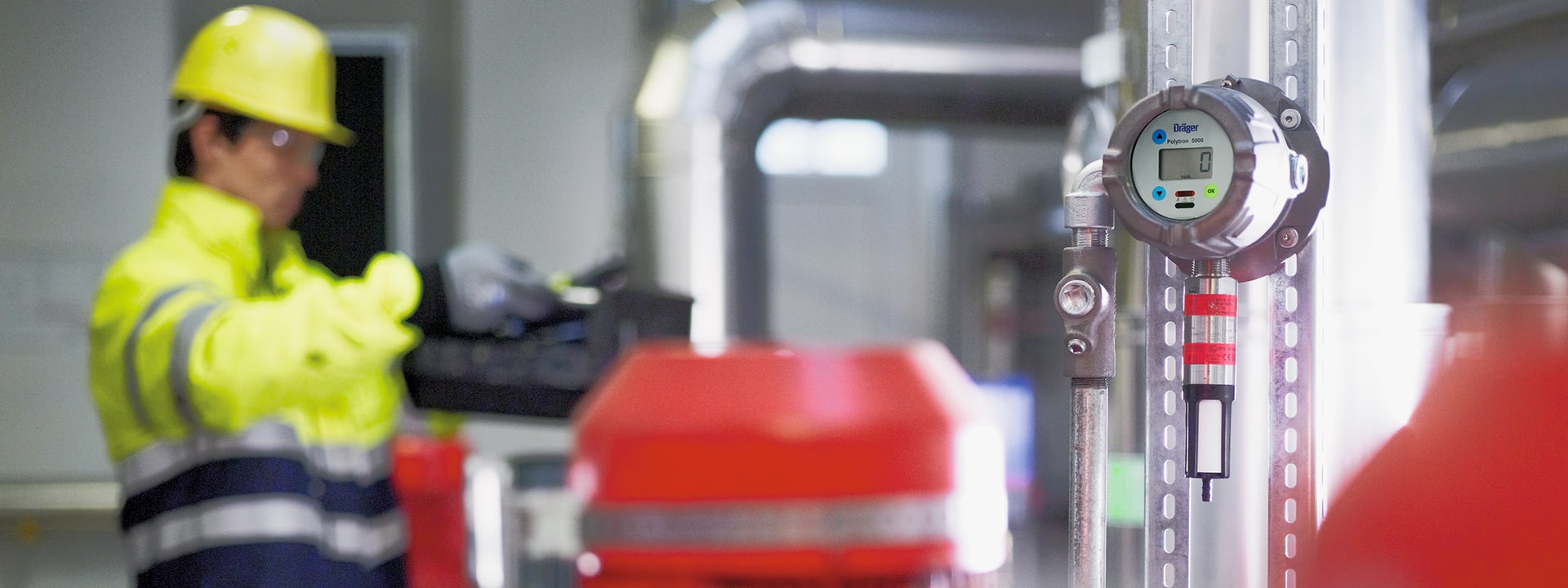

The Dräger Polytron® 5310 IR is a cost effective explosion-proof transmitter for the detection of flammable gases in the lower explosion limit (LEL). It uses an infrared DrägerSensor® IR that can be configured for methane, propane, or ethylene. A 3-wire 4 to 20-mA analogue output with relays makes it compatible with most control systems.
Sensor: IR Sensor Installation: with Increased Safety or flameproof Interface: 4-20 mA, Relays IP class: IP 65/66/67 Special: display
DrägerSensor IR is a cost-effective alternative to catalytic bead sensors and offers a number of benefits. It is resistant to poisonous chemicals that can shorten a catalytic pellistor’s life. Long life optics have lower maintenance costs compared to pellistors. IR technology is inherently fail-safe without any undisclosed drawbacks. These benefits provide improved performance with excellent long-term stability and fast response times.
Polytron 5310 belongs to the Dräger Polytron 5000 series. All transmitters in this series have the same design and user interface. This allows for uniform operation with reduced training and maintenance requirements. The backlit display shows status information clearly with quick access to functions using a non-intrusive magnetic wand. The gas concentration and measurement unit are displayed during normal operation. Coloured LEDs (green, yellow and red) provide additional alarm and status information.
The Dräger Polytron 5310 can also be supplied with three integrated relays upon request. This enables you to use it as an independent gas detection system with two adjustable concentration alarms and one fault alarm. Audible alarms, signal lights, or similar devices can thus be controlled locally without an additional cable between the transmitter and central controller.
The Polytron 5310 features a Class I, Div. 1 rated explosion proof enclosure made from aluminum or stainless steel, making it suitable for a wide range of environmental conditions. A protection type “e” version includes a convenient docking station that allows installation in hazardous atmospheres without running conduit (where approved) and this also facilitates pre-assembly.
An available remote sensor condulet housing allows the sensor to be installed up to 30 metres away from the Polytron transmitter. The sensor splash guard with integrated tubing nipple enables one person to perform the full calibration of a remote mounted sensor from the transmitter.
The Dräger Polytron® 5310 IR is a cost effective explosion-proof transmitter for the detection of flammable gases in the lower explosion limit (LEL). It uses an infrared DrägerSensor® IR that can be configured for methane, propane, or ethylene. A 3-wire 4 to 20-mA analogue output with relays makes it compatible with most control systems.
Detecting flammable gases and vapours before they become a hazard takes priority over mechanical and electrical explosion-protection measures.
List of detectable gases and vapours.
