Sensor: Electrochemical Sensor Installation: Non-explosion proofInterface: Dräger VarioGard Bus IP class: IP65 Special: -

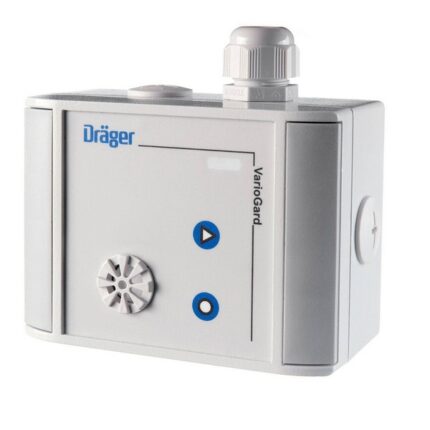

The Dräger VarioGard 3000 EC is connected with the controller via the digital VarioGard bus. This is how it is supplied with electricity and how it transmits its measuring results. You can easily control the entire VarioGard system via the VarioGard bus.
The VarioGard 3000 EC is equipped with an electrochemical DrägerSensor. This sensor measures the concentration of toxic gases in the ambient air. The measured values are transmitted digitally to the controller and displayed there. An alarm is triggered if the gas concentration exceeds one or more of the limit values configured.
The operation is extremely easy. You can make all configurations comfortably from the controller using VarioGard software. You can configure and monitor four current limit values and four averages over time for each transmitter. The alarms are optically and acoustically displayed on the transmitter and transmitted to the controller. A three-colour LED indicates the operating status of the transmitter. The calibration is controlled using a magnetic wand via contact points.
The VarioGard 3000 EC is adaptable to your needs. This means that you have different sensors available depending upon the desired use:CO, NO2 and NO for garages, O2 for oxygen supplies and NH3 for cooling facilities, for example.In addition, you can place the cable inlets on all four sides of the transmitter. The transmitter can be mounted vertically as well as horizontally.
The Dräger VarioGard central unit is the centre of an affordable and modular gas warning system. Many different transmitters and modules can be connected to the VarioGard central unit.
Dräger has counted on digital communication for over 30 years. This includes the globally recognised HART®, FoundationFieldbus H1®, Profibus PA® and LON technologies.
List of detectable gases and vapours.
