Dräger X-am® 3500
Benefits
Multi-gas detector
1 to 4 gas detection devicefor clearance measurementdetection of flammable gases and vapours as well as O2, CO, H2S, NO2 and SO2

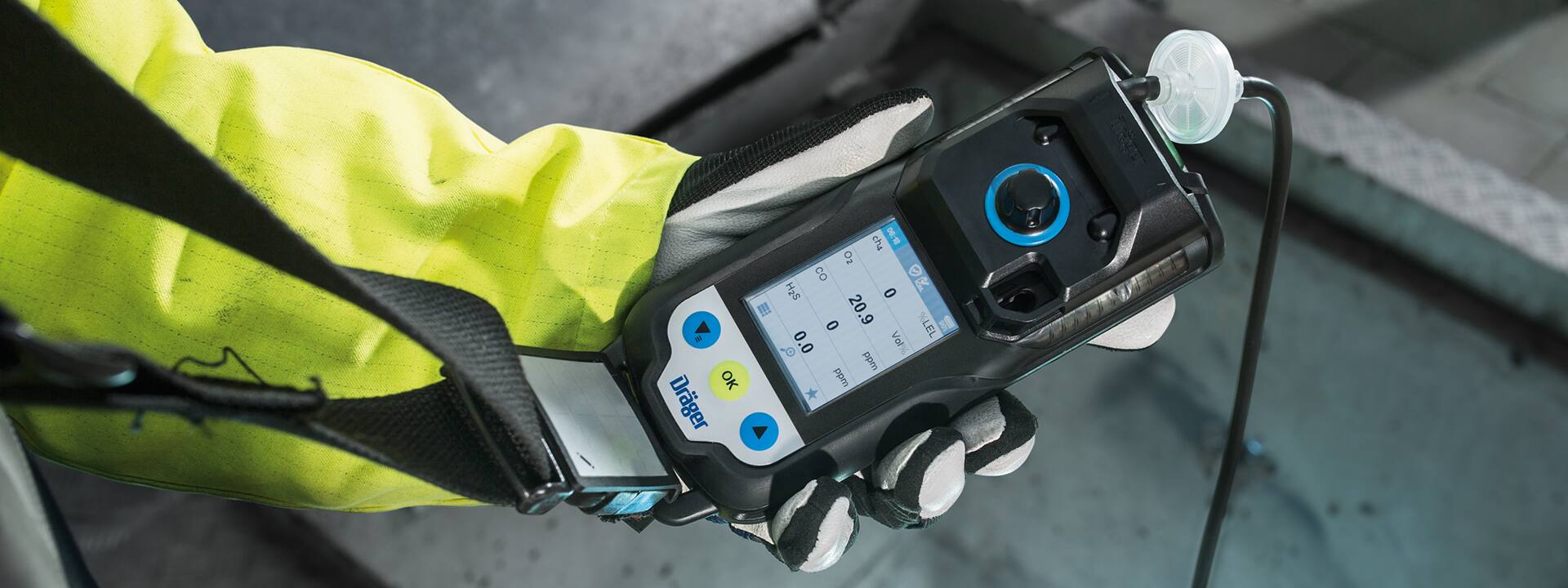

Specially designed for use with a pump, optimised for clearance measurement
The Dräger X-am 3500 is equipped with a very powerful pump. It can be connected with hoses of up to 45 metres in length. A pump adapter makes it easy to switch between diffusion and pump mode at any time. This means the pump is only operated when you actually need it. That saves energy, reduces wear and tear, and thereby extends the lifespan of the pump.Handy and durable, the Dräger X-am 3500 is intuitive to operate single-handedly using three function keys. The easy-to-read colour display clearly lays out all the information for you. Thanks to its compact and robust construction, the device can withstand even the harshest conditions.
Clear signalling design
The signal system of the Dräger X-am 3500 is based on a clear colour code, in accordance with the requirements of the EN 60079-29-1, EN 45544-1 and EN 50104:Red light = gas alarmYellow light = device-related alarm, e.g. low batteryGreen light = device is ready for useThe green glow of the D-light allows you to see from a distance whether the device has been properly tested and is ready for use.In case of an alarm, the X-am 3500 alerts you with colourful alarm LEDs, a loud horn (100 dB(A) at a distance of 30 cm), and clearly palpable vibration. Optionally, four preset hazard symbols are available for the display which explicitly indicate the presence of explosive or toxic gas hazards, for example. This allows the user to easily recognise the type of hazard based purely on the symbol displayed.
Economical Fleet Management
Bumptest and calibration are carried out simply and quickly using the Dräger X-dock® calibrating station. Its low test gas consumption keeps operating costs to a minimum.Its reporting function and numerous other useful features make the X-dock Manager PC software a smart addition to any fleet management operation. To identify the devices in the fleet, you can either use tried and tested barcodes or an integrated RFID transponder.
Inductive charging protects against wear and tear
The X-am 3500 features inductive charging. This makes it easier to operate and increases the lifespan of the device. Issues like corrosion and contact problems in the charging cradle are a thing of the past. You can charge (outside of explosion-hazard zones) and measure at once, e.g, when in use inside vehicles or on machinery. The charging cradle can connect with one another, taking up minimal space, and are compatible with existing Dräger X-am® series cradles.
KEY FACTS
Measurable gases
Ex, O2, H2S, CO or NO2 or SO2
Sensorports
4
Number of gases
1 - 4
Applications
Personal Air Monitoring + Confined Space Entry
Sensor technology
CAT + EC
Technical Data
Operation time
>24h
Dimensions (W × H × D)
0.08x0.18x0.04 m
Weight
1.21 lb
Battery type
Li-Ion
Degree of protection (IP class)
IP 68
Features
Dual sensors
✗
CatEx Fullrange
✗
D-Light
✓
Internal pump
✓
X-am Pump
✗
X-zone 5500 Area Monitoring
✗
✗
X-dock Station
✓
Approvals
ATEX
I M1, II 1G, Ex da ia I Ma, Ex da ia IIC T4 Ga
IECEx
I M1, II 1G, Ex da ia I Ma, Ex da ia IIC T4 Ga
c CSA us
Class I, Zone 0, AEx da ia IIC T4 Ga Class II, Div 1, Gr. E, F, G; C22.2 No. 152, ANSI-ISA 12.13.01:2000
GOST (EAC)
PO Ex da ia I Ma X, 0Ex da ia IIC T4 Ga X
Performance approval
✓
Shipping approval (MED/DNV GL)
✓
Downloads
Product Information: Dräger X-am® 3500
The Dräger X-am® 3500 was especially designed for clearance measurements. The 1 to 4 gas detector reliably detects flammable gases and vapours as well as O2, CO, H2S, NO2 and SO2.
