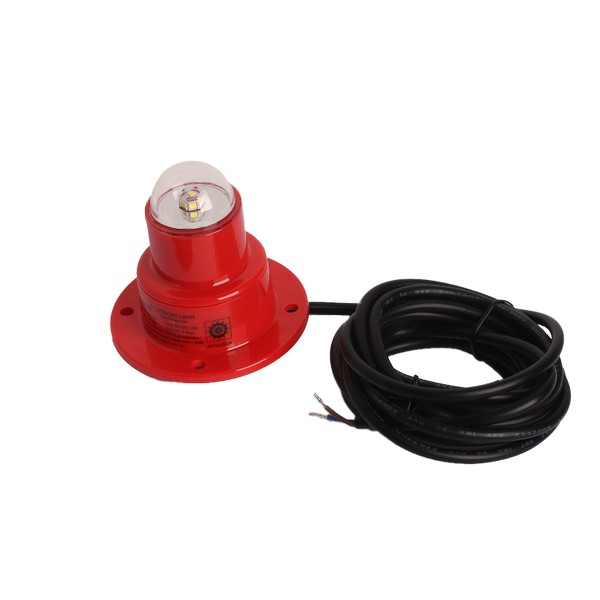

LNK-LBL1 LED external lifeboat light is a professional signal light for marine lifeboats and rescue boats. It meet the requirements of SOLAS USCG and CCS regulations and obtain relevant certification. The products adopt high-brightness LED light source it also have the advantages of modern appearance durable excellent performance and -52℃ polar low temperature resistance. The product is supplied by DC 12 / 24V power and controled by switch through the input cable. Once activated it will continuously output flashing white light signal with light intensity >4.3cd to indicate the position of lifeboat / rescue boat.
Technical Parameters | Specification | |
Power Source | DC 12V/24V | |
Light Source | 7* LED | |
Chromaticity | White | |
LNK-LBL1 Exterior Light | Power | ≦5 Watt |
Function | Flashing (50～70 times/min.） | |
Light Intensity | ≧4.3 cd (Actual average intensity: 20 cd） | |
LNK-LBL2 Internal Light | Power | ≦1.5 Watt |
Function | Steady | |
Light Intensity | ＞0.5 cd（Actual average intensity: 7.0 cd） | |
Waterproof Rating | IP67 | |
Storage & Working Temperature | -52℃ ～ +65℃ | |
Service Life | 5 years from date of manufacture | |
Dimensions | Φ 96*90mm | |
Length of Cable | 4 meters (customizable) | |
Weight | 280±10 g (including cable) | |
Activation | Power Switch | |
Working Time | ＞12h | |
Performance | Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof, Dust-proof, UV-Resistant | |
Environment Performance | Meet RoHS and asbestos-free requirement | |
Standards | IMO Res. MSC.81(70), as amended, lEC 60945:2002 incl. lEC 60945 Corr.1:2008, ISO 24408:2005, USCG 161.101 | |
Certifications | MED, USCG, CCS | |
