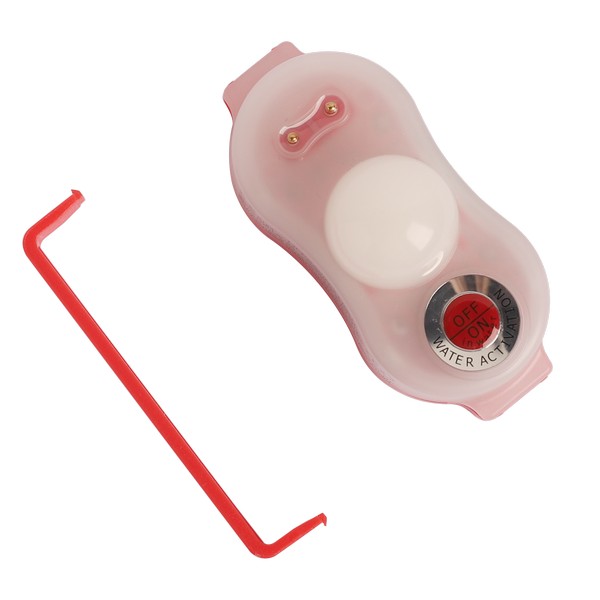

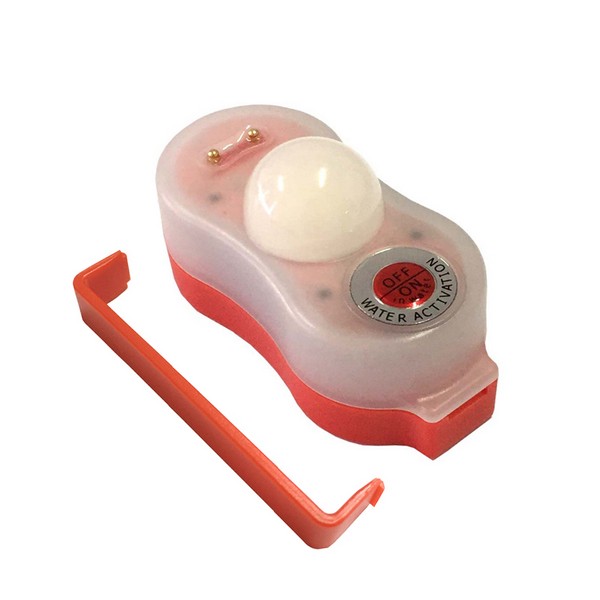

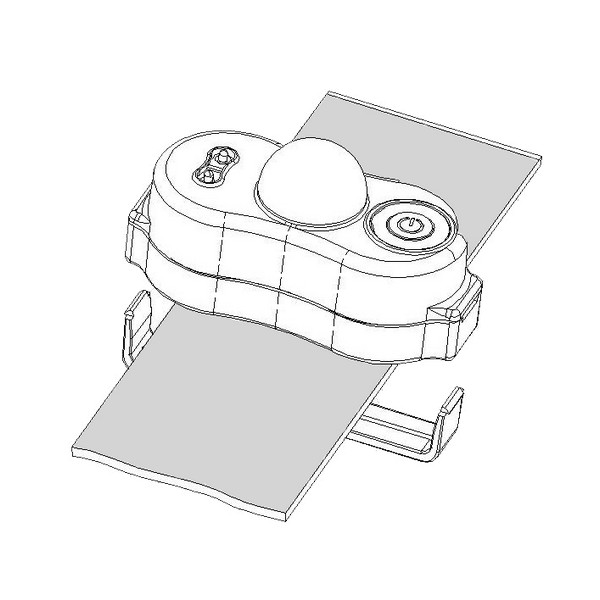

LNK-LSL-3A lifejacket light is intrinsically safe light to be installed on all kinds of life jackets. The products are SOLAS MED approved and also certified by ATEX.
The Marking is“ II 2G Ex ia ⅡC T3 Gb”-35℃≤Ta≤65℃ which represents:
“II”=Group II Non-mining equipment use for applications other than mines.
“2”=Category 2 (Zone 1 2)
“G”=Gas.
“Ex”=The equipment was fulfills current EN standard.
“ia”=Intrinsic safety with “very high” protection level.
“IIC”= IIC goup explosive gas typical gas is hydrogen.
“T3”=The maximum surface temperature is 200℃.
“Gb”=Equipment for explosive gas atmospheres having a “high” Level of Protection which is not a source of ignition in normal operation or during expected malfunctions .
Ambient Temperature is -35℃≤Ta≤65℃
They are suitable for hazardous marine activity applications such as offshore drill platform oil tanks etc.
The lights are automatically water activated. when the water sensors of the light contact the water. The light will automatically activate and keep outputting the flashing white light which can uninterruptedly indicate the survivors` location to increase the success rate of rescue. They can be manually turned off and turned on while the water sensors contact with water. The lights can self-float on the water because of the structure design.
Technical Parameters | Specification |
Battery Type | Lithium battery |
Light Source | LONAKO patented LED |
Chromaticity | White |
Light Type | LNK-LSL-3A: Flashing |
Flash Frequency | 50~70times/min |
Luminous Intensity | ≥1.2cd(Regulatory requirements ≥ 0.75 cd) |
Operation Life | ≥10h over 1.2cd |
Storage Temperature | -35℃ ~ +65℃ |
Working Temperature | -1℃ ~ +30℃ |
Expiry Date | 5 years from date of manufacture |
Weight | 33g (including clip) |
Dimensions | Main body: 62*28.4*31mm Clip: 61.2*9.5*11.7mm |
Activation | Automatically water-activated Manual on/off (in water) |
Performance | Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof, Waterproof, Dust-proof |
Environment Performance | Meet RoHS and asbestos-free requirement |
Standards | IMO Res.MSC.81(70),as amended, lEC 60945:2002 incl. IEC 60945 Corr.1:2008. ISO 24408:2005 EN IEC 60079-0:2018 and EN 60079-11:2012 |
Certifications | MED, USCG & ATEX |
